FEATURES
Ergo is the motor that does not fear the passage of time. Its mechanics are among the most robust on the market. Special technical choices guarantee solidity, silence and reliability over time.
- Available in two 24V versions and five 230V versions.
- Aluminum structure, light and unalterable.
- Gearmotor container made of die-cast and coated with structured polyester paints for the exterior.
- Three different types of foundation boxes.
- Thick bottom.
KIT INCLUDES

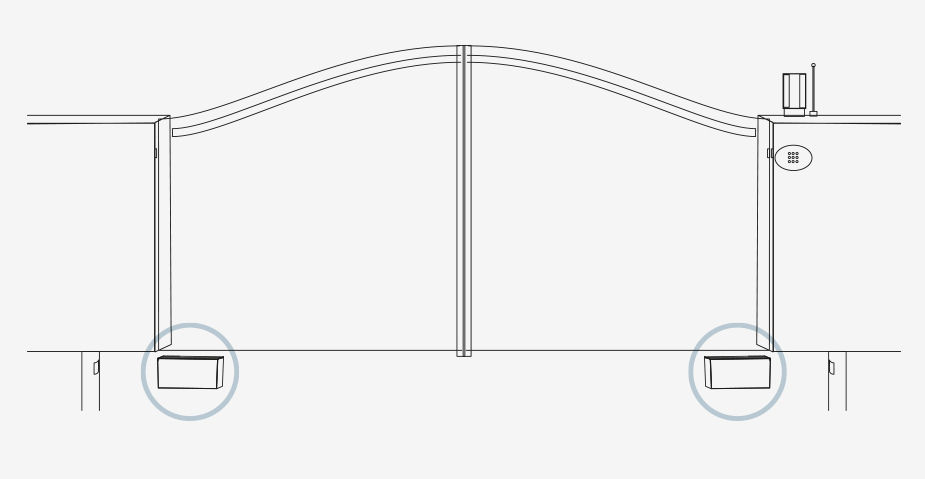

Life Double Underground Gate Motors complete with: 2 foundation boxes with motors,
Opening & Closing mechanical stops,
2 Gate Locks, Controller, aerial,
1 pair of photo cells,
2 remote transmitters (fobs),
setup manual and 24 months warranty.
PERFORMANCE REQUIREMENTS
| ER4 UNI (230V 50Hz) | ER4L UNI (230V 50Hz) | ER4B (230V 50Hz) | ER424 UNI (24V) | |
|---|---|---|---|---|
| Max door weight (Kg) | 700 | 700 | 700 | 600 |
| Max leaf length (m) | 3 | 5 | 3 | 3 |
| Motor power supply (V) | 230V ac | 230V ac | 230V ac | 24V dc |
| Power (W) | 300 | 300 | 300 | 120 |
| Torque (Nm) | 350 | 350 | 350 | 250 |
| Lubrication (Type) | Fat | Fat | Oil | Fat |
| Thermal protection (° C) | 140 | 140 | 140 | - |
| Operating temperature (° C Min / Max.) | -20 +70 | -20 +70 | -20 +70 | -20 +70 |
| Degree of protection (IP) | 67 | 67 | 67 | 67 |
| Time to complete 90 ° (s) | 18 | 28 | 18 | 20 |
| Intermittence (%) | 35 | 35 | 35 | 80 |
